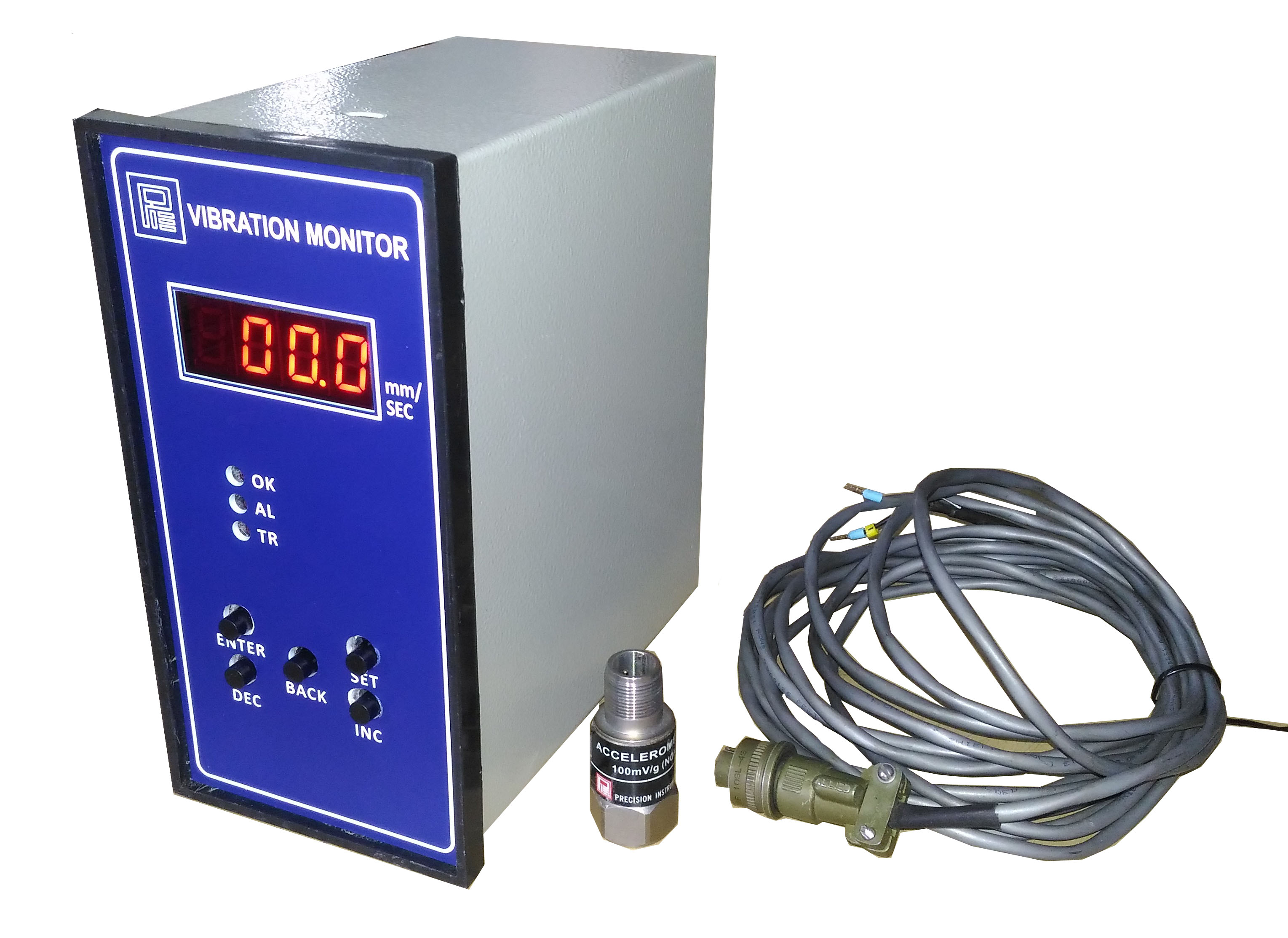

Precision Vibration monitoring system provides essential protection for the critical equipment likes fans, Motors, pumps Compressor. It Measures the vibration with accelerometer when it is mounted on the machine and generates relay output for Alarm or shutdown the vibration levels exceed the preset threshold value.
Precision Vibration monitor has brought digital display and front end key available for set point. User can Set their Alarm and Trip Velocity using available keys in the front end.
Precision Vibration monitoring system has user friendly system comes with the multiple channel, it vary depends upon the user requirement.
Features
Optimum Output
Top Class Quality
Hi-tech Technology Used
Specifications
| S.No | Specifications | Details |
| VIBRATION MONITOR - DISPLAY | ||
| 1 | Model No | 1800S |
| 2 | Type | Microcontroller based with inbuilt Digital Display |
| 3 | No of channel | 1 or 2 or 3 or 4 (As per customer requirement) |
| 4 | Input | From Contact type Accelerometer |
| 5 | Measured Variable | 0-50mm/sec RMS (As per customer requirement) |
| 6 | Input impedance | 50kΩ |
| 7 | Input Sensitivity | 100mV/g |
| 8 | Standard | As per API 670 |
| 9 | Environmental Condition | 0 to 65˚C |
| 10 | Display type | 7Segment ½” LED Display |
| 11 | No of Digit | Four |
| 12 | Resolution | 1 digit |
| 13 | Indication Provided |
Alarm - 3mm LED OK - 3mm LED |
| 14 | Output | 4-20mA DC Analog output for each channel / 0-2V DC |
| 15 | Output impedance | 100ohms(load resistance) |
| 16 | No of Relay | Two for Alert and Trip |
| 17 | Relay contact detail | 1A,240VAc/220VDC, 1C/o relay |
| 18 | Power Supply | 230V AC @50Hz |
| 19 | Enclosure | IP 55 |
