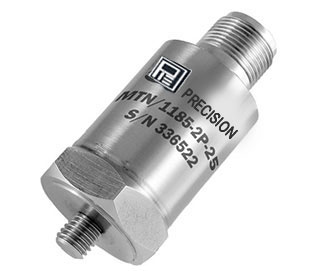

For the complete customer satisfaction, we are providing them desirable assortment of Velocity Transmitter. The offered range of Velocity Transmitter is developed from the superior quality of raw material sourced from the trusted vendor of the industry. Apart from this, our offered product is examined on diverse parameters and provided with flawless finishing which matches the requirements of customers.
Features
Excellent service life
Easy to operate
Easy to carry
Characteristics
It is widely used in fans, pumps, compressors, turbines and other rotating machinery and other equipment of electric power, steel, petrochemical and other industries.
Various vibration values during the equipment run-time is an important index to evaluate if the equipment is running properly used transducer to test the vibration is an economic and high-quality proposal
Specifications
It is operated by magnetic - electric dipole movement of magnetic field lines cut principle, thus transfer the voltage signal amplitude to standard current signal.
Signal output has wrong line protection function.
It can avoid the transducer to be damaged due to wrong line on site.
| S.No | Specifications | Details |
| 1 | Industrial machinery Loop Power Vibration Sensor | Two wire Loop powered - Measuring range: 0-25 mm/sec RMS velocity |
| 2 | Sensor case Material | Stainless Steel |
| 3 | Sensor Input | 15 Volt to 30 volt DC |
| 4 | Sensor Output current | 4 - 20 mA DC proportional to velocity |
| 5 | Frequency Response | 10 Hz to 1 KHz +/- 5% or better |
| 6 | Operating Sensor Temp. range | 80 deg C (max) or better |
| 7 | Extension cable | 5 mtr (or) 10 mtr. with SS corrugated conduit |
| 8 | Mounting Pad | Suitable to the offered Industrial grade Loop powered Vibration Sensor |
| 9 | Output Current 4 - 20 mA | Suitable for direct hook up directly with PLC, DCS and 4 - 20 mAmps monitors |
| 10 | Sensor Mounting Accessories | if any such as Adopter Stud etc., should be supplied at free of cost |
