Vibration Monitoring System (Non-Contact)

Our company is leading organization of this industry engaged in offering wide range of Vibration Transducer to our important clients. Our product range gives the hassle free long service life to the user and available at feasible prices. The offered range of Vibration Transducer is designed according to the standards of the entity by using superior machines and the best quality material.















Specifications

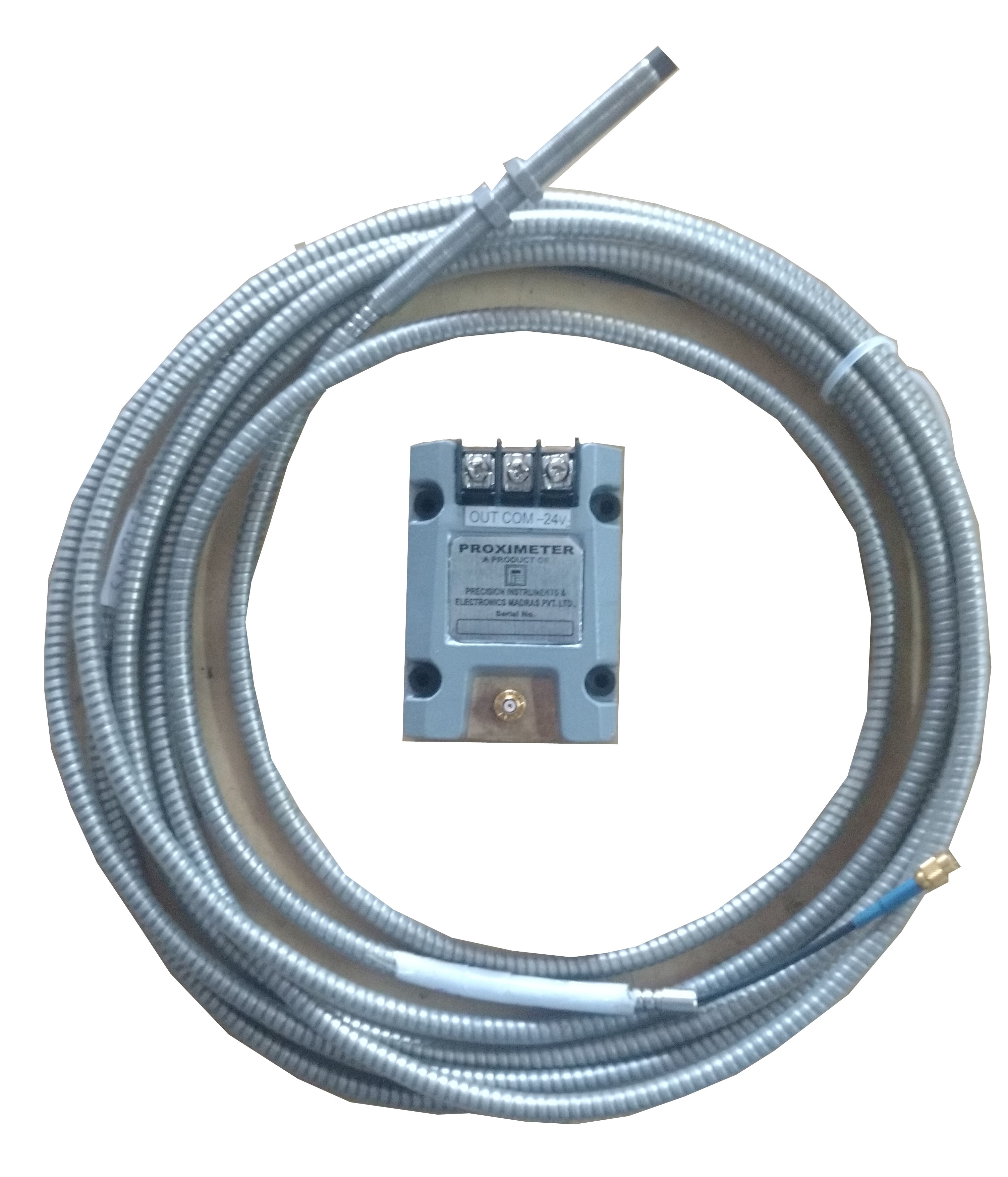

PIE 7000 series proximity transducer consists of a probe, extension cable and proximity probe driver.
The system consists of an eddy current non contact probe, an oscillator / demodulator driver with signal transducer and 5 metres of interconnecting cable which is part of the RF circuitry.
The frequency response extends from 0 to 10 KHz
Thus it is very useful for relative vibration between shaft and bearing or Axial Displacement or any other direct displacement of metallic shafts.



Characteristics

Sensitivity 100mV/mil or 200mV/mil or 50 mV/mil
Linearity 5 & 8 mm 10 to 80 mils
11 mm 20 to 120 mils
25 mm 40 to 200 mils
50 mm 40 to 300 mils
Linearity within /- 5% of the best straight line
Temperature Range -20°C to 150°C
Frequency Response DC to 10 KHz
Signal Connector Miniature Co-axial
Integral Probe Lead Cable 1 Metre (Approximately)
Approvals CMRI for various classifications and zone I & II as per IS 2148 if specified

Probe Driver/Proximeter

Power Input -24V DC for PIE Monitor 12V DC
Temperature -20°C to 70°C
Weight 300 gms
Fixing Four 5 mm dia holes in the aluminium casing
Input Connector Miniature Coaxial
Output Connector 3 way Terminal Strip
Approvals(optional) CMRI Certificate/Radiation Qualification
